“RC2014 is a simple 8 bit Z80 based modular computer originally built to run Microsoft BASIC. It is inspired by the home built computers of the late 70s and computer revolution of the early 80s. It is not a clone of anything specific, but there are suggestions of the ZX81, UK101, S100, Superboard II and Apple I in here. It nominally has 8K ROM, 32K RAM, runs at 7.3728MHz and communicates over serial at 115,200 baud.” - RC2014 Homepage

alt test

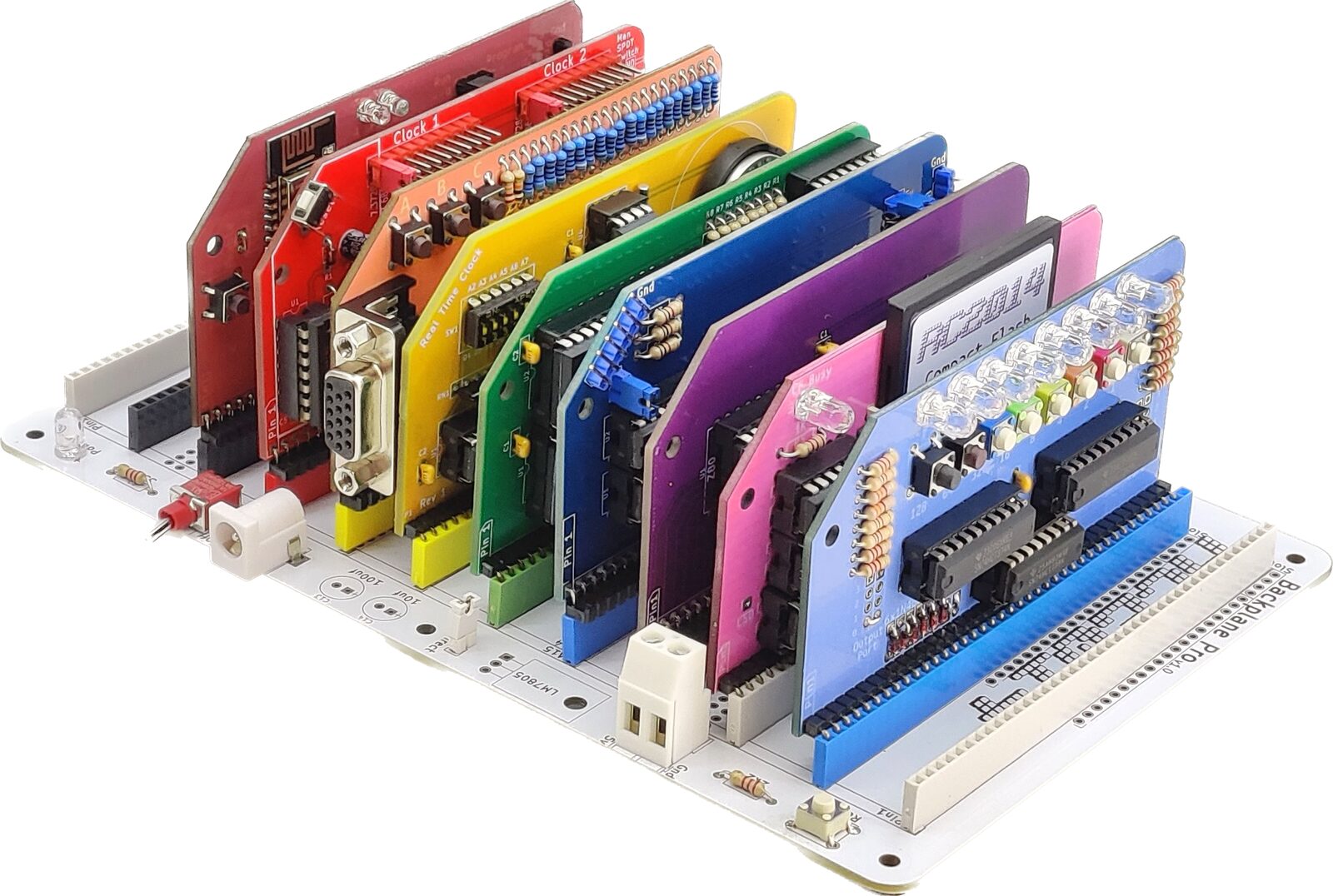

I soldered this kit together recently, which was an undertaking that I underestimated. The Pro kit (pictured above) requires over 1,000 joints to be soldered just on the backplane itself.

My kit came with the compact flash and digital I/O modules. With the ROM jumpers set to the correct page, the kit boots to the Z80 SBC Boot ROM, which can then boot the install of CP/M 2.2 that comes preinstalled on the CF card.

Editor Woes

I might one day learn how ED.COM works. Today is not that day. Instead, I’ve installed NVEDIT using DOWNLOAD.COM. There’s a copy of DOWNLOAD.COM preinstalled on the virtual A: drive. Workflow will differ depending on your editor of choice, but writing assembly will be the same as long as you’re using the standard CP/M tools for development. I may write a future post looking into Small Computer Monitor, at which point your assembly mnemonics and syntax will vary slightly.

A Quick Aside

CP/M ships with three executables, ASM.COM, DDT.COM, and LOAD.COM. Once you’ve written your source code, you can assemble your program to hex with ASM FILE.ASM. The file extension is also implicit if you’ve named your file .ASM. This outputs a .HEX file.

You can invoke the DDT debugger on it, and execute it. If you want to build a self-contained executable, invoke LOAD on your .HEX file and it will generate a .COM file.

There Are Eight Lights!

Picard saying 'There are four lights!'

The Digital I/O module makes for a great first device to fiddle with. It is addressed as device 0, accepts an 8-bit value that it displays in two’s complement with 8 LEDs, and has eight momentary pushbuttons that are read back as an 8-bit value. The LEDs it comes with are very bright, though! Let’s fix that and turn them off.

The official page for this module mentions this little blurb about controlling it:

In BASIC the port can be read with the INP(0) command which will return a number from 0 to 255, and written to with OUT 0,x where x is the number to output from 0 to 255

In assembly language, the mnemonics in a,(0) and out (0),a do the same function

Some research and trial/error led me to this simple program that will turn those lights off. On the Apple II, a popular memory location for the ORG statement (where this program is loaded into memory) is $8000, but in CP/M $0100 is a standard choice. Note that the h in 0100h stands for hexadecimal, and is just the convention that CP/M’s assembler uses.

org 0100h
mvi a,00h
out (0)
ret

So, what does the rest of this do? Well, if we want none of the lights lit up, we’d want to send 0 to the device. CP/M’s assembler just uses the A register for OUT commands. So we need to stick 0 into the A register.

We’ll do this with MVI, which is the move immediate data instruction. 00h is a hexadecimal constant for 0, and once it’s in the proper register, we just call out (0). This sends the data in the A register to the device on the bus of ID 0.

That’s all of the “doing stuff” assembly. RET returns function to CP/M; Without RET, the lights will extinguish, but the system will also hang.

So, altogether:

  • Stick our assembled data in memory at 0100h
  • Load 00h into the A register
  • Send the contents of the A register to device of ID 0
  • Return execution to parent (returning control to CP/M).

Actually pretty simple!

Let’s do something more fun, though.

Reinventing The Signal Lamp, Poorly

CP/M has a BIOS and BDOS (Basic Disk Operating System), collectively referred to as the FDOS. The documentation for this can be found in Chapter 5 of the CP/M 2 Manual. This includes an ABI that can be called from your program. For now, we’ll just mess with 1: Console Input.

In general, the function number is passed in register C with the information address in the double byte pair DE. Single byte values are returned in register A …

So we want function number 1. Let’s use that same MVI instruction to stick 01h in register C, this time.

mvi c,01h

Okay, so now we need to call the FDOS functions. The documentation states:

As mentioned above, access to the FDOS functions is accomplished by passing a function number and information address through the primary point at location BOOT+0005H

All standard CP/M versions assume BOOT=0000H, which is the base of random access memory.

0000h + 0005h = 0005h , So let’s CALL it!

call 0005h

Remember, single byte values are returned in register A. That makes the last step the same as in the first example. We’ll call:

out (0)

Combining everything together, our entire program is:

org 0100h
mvi c,01h
call 0005h
out (0)
ret

Altogether:

  • Stick our assembled data in memory at 0100h
  • Call the console input function, getting a single byte from console input
  • Send that to device (0)
  • Return execution to parent

Now you can see the binary representation of whichever key you press!

Demonstration

But wait, yours doesn’t quite do that..?

When you run it, you’ll notice that your program executes after one keystroke. Not as fun as it could be. If you take a closer look at Chapter 5, you’ll find a solution to this in just a few more lines of ASM. I am doing the annoying thing, and leaving it as an exercise to the reader. 🤔

Alright, alright. The solution is below. 😁

org 0100h
mvi c,01h
call 0005h
out (0)
cpi '*'
jnz 0100h
ret


Resources Used

8080 Programmers Manual

CP/M 2 Manual
